Rice Husk Pellet Machine: Production Line Guide

Why Rice Husk Is a High-Value Biomass Feedstock

Rice husk is one of the most abundant agricultural residues globally. For every metric ton of milled rice, approximately 200 kg of husk is generated as a byproduct. Historically, the majority of this material is either landfilled or burned in open fields — both practices that waste recoverable energy and generate particulate emissions.

The problem is not scarcity of feedstock. The problem is conversion infrastructure. Raw rice husk has a bulk density of roughly 90–150 kg/m³, making storage and transport economically impractical at scale. It also burns inefficiently in that form, with inconsistent combustion and high ash carryover. These physical limitations have kept utilization rates low.

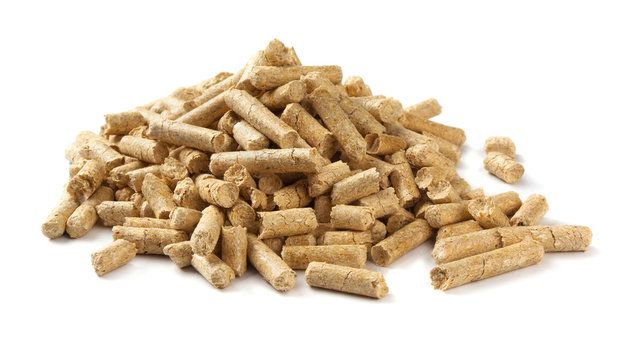

Pelletization solves the density problem. A ring die pellet mill compresses rice husk under high pressure, producing pellets with bulk density in the range of 600–700 kg/m³ — a 5–7× improvement over raw material. The result is a standardized, high-energy biomass fuel that can substitute directly for coal or heavy fuel oil in industrial boilers, co-generation plants, and district heating systems.

Kingwood, established in 1999 and listed on the NEEQ (stock code: 871765), has designed and supplied biomass pellet production lines for over 2,000 projects across 30 countries. Its equipment handles rice husk alongside wood waste, straw, and other lignocellulosic feedstocks within the same integrated line architecture.

Rice Husk Pellet Production Line: Process and Equipment

A complete rice husk pellet production line must address four process challenges specific to this feedstock: high silica content (which accelerates die wear), variable inlet moisture, fine particle size after grinding, and high ash content relative to woody biomass. Kingwood’s wet-feed line design accounts for all four.

Stage 1 — Size Reduction Incoming rice husk requires minimal pre-chipping compared to wood waste, but a hammer mill is used for consistent particle sizing before drying. Screen aperture selection is critical: too coarse increases die wear; too fine increases energy consumption in the dryer.

Stage 2 — Drying Rice husk harvested or stored under humid conditions frequently arrives at 20–30% moisture. A drum dryer reduces this to below 15% — the threshold required for stable pellet formation and compliance with EU moisture standards. Kingwood’s drum dryers are dimensioned per line throughput and integrate with the line’s thermal management system.

Stage 3 — Fine Grinding Post-drying, a secondary hammer mill pass reduces particle size to the range required by the ring die. Particle size distribution directly affects pellet density and durability index (PDI), a key quality metric for export-grade biomass pellets.

Stage 4 — Pelletizing The core of the line is the ring die pellet mill. For rice husk applications, Kingwood configures die specifications — hole diameter, compression ratio, and material hardness — to account for the abrasive silica content of husk. Available models include:

• JWZL-688: 2–2.3 t/h — suitable for small-scale agro-processing facilities
• JWZL-688D: 3–3.5 t/h — mid-scale dedicated rice husk lines
• JWZL-928: 4–5 t/h — high-throughput single-machine configuration
• JZWH-860: 4–5 t/h horizontal ring die configuration — alternative layout for space-constrained facilities

Multi-machine installations scale throughput further. Kingwood has designed lines with aggregate capacities reaching 200,000 metric tons per year.

Stage 5 — Cooling and Packaging Freshly pelleted product exits the die at 70–90°C. A counter-flow cooler reduces pellet temperature and residual surface moisture before downstream handling. Pellets are then conveyed to automated packaging, completing the enclosed processing sequence.

The entire line operates under Kingwood’s Three-Standardization Framework: integrated processing, dust-free enclosure, and automated control — an engineering standard that distinguishes compliant industrial installations from uncontrolled agricultural processing environments.

Fuel Quality, Emissions Compliance, and Economic Case

Rice husk pellets produced on Kingwood lines meet the following verified specifications:

Parameter	Kingwood Pellet Spec	Standard
Calorific value	4,800 kcal/kg	—
Moisture	<15%	EU / ISO
Sulfur	<0.3%	GB / Japan (≤0.5%)
Ash	<18%	ISO (<20%)
Dioxins	<0.5 ng-TEQ	China GB (≤1.0 ng-TEQ)

All emission indicators fall below GB13271-2001, China’s national Emission Standard of Air Pollutants for Boilers. This compliance profile makes rice husk pellets viable for industrial boiler substitution in regulated operating environments.

The economic rationale for conversion is direct. Industrial buyers switching from coal or heavy oil to rice husk pellets produced at this specification realize 40–50% cost savings on equivalent thermal output. For facilities with on-site rice husk supply — rice mills, agro-processing complexes, agricultural co-operatives — the input material cost is effectively the cost of collection, further improving the margin.

Kingwood’s reference cases include a 24 t/h wood chip pellet production line in Vietnam (2023) and a 12 t/h Vietnam installation (2024) with a documented 23-month payback period. Agricultural residue lines follow comparable financial structures where feedstock availability is established. For project-specific throughput requirements, Kingwood’s engineering team provides production line design, equipment selection, and ROI modeling from initial inquiry through commissioning.
